Asmodus Spruzza 80W Squonk kit

The Asmodus Spruzza is a time-tested, regulated squonk mod with up to 80W of power and a squonk, pump mechanism with a 6ml bottle. Also included in this kit is a Fonte RDA dual-spiral atomizer. The device is powered by one 18650 battery (not included).

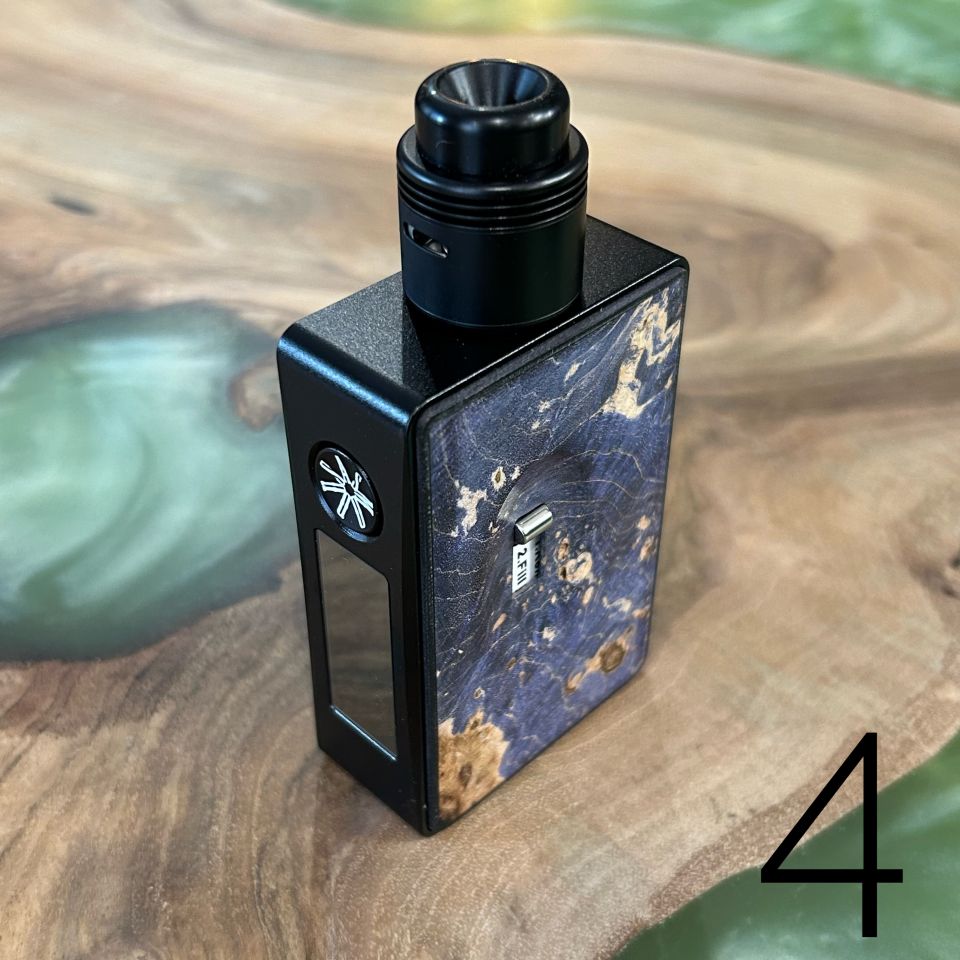

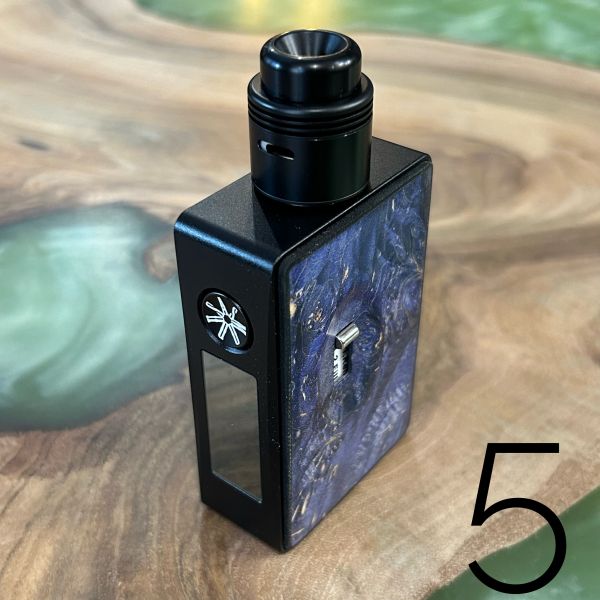

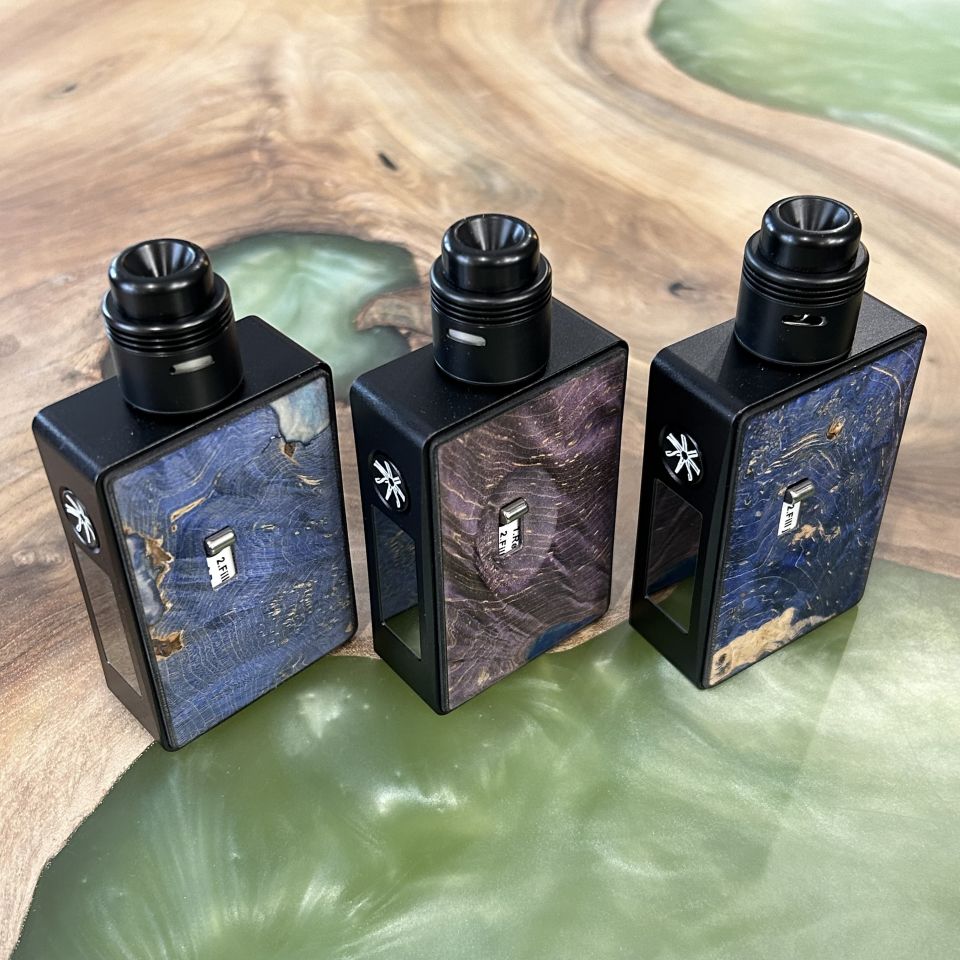

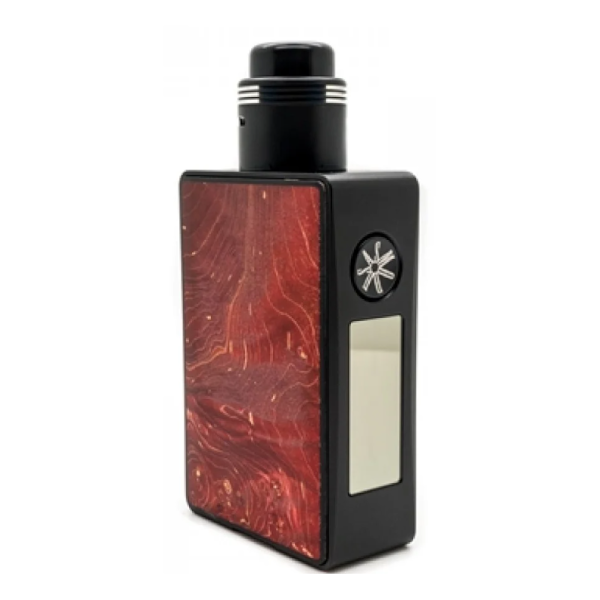

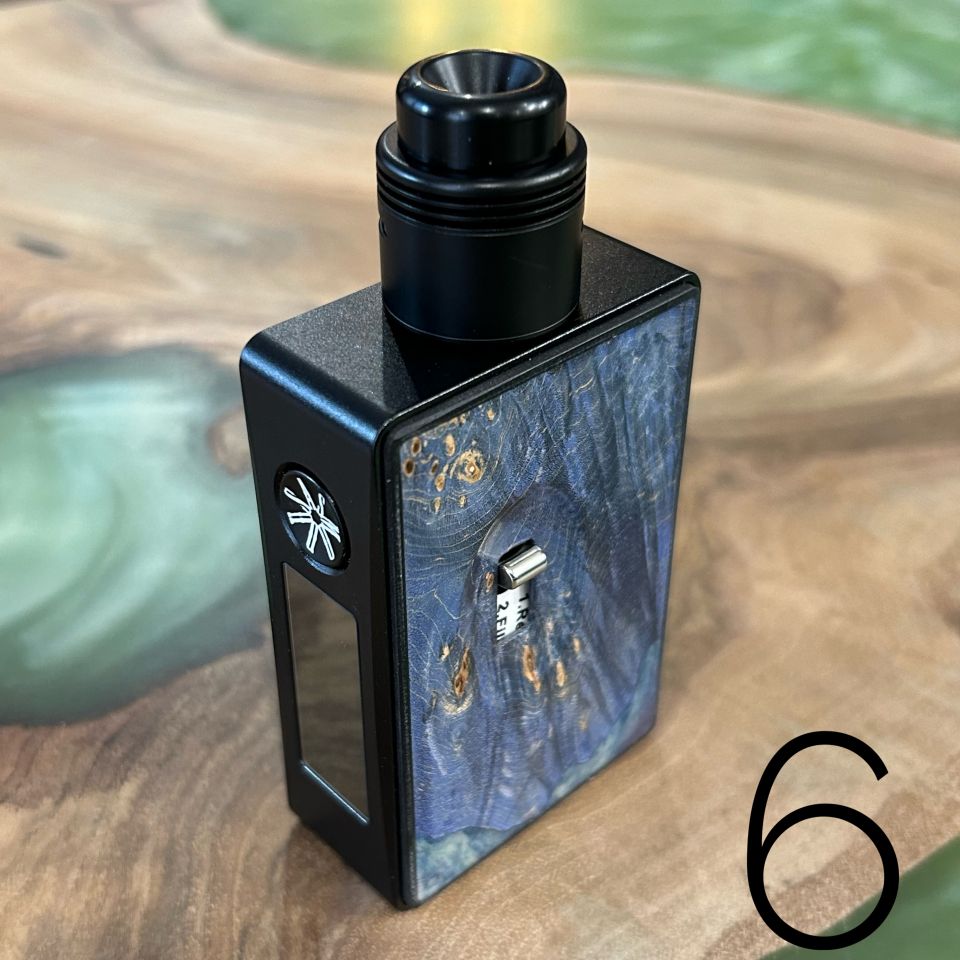

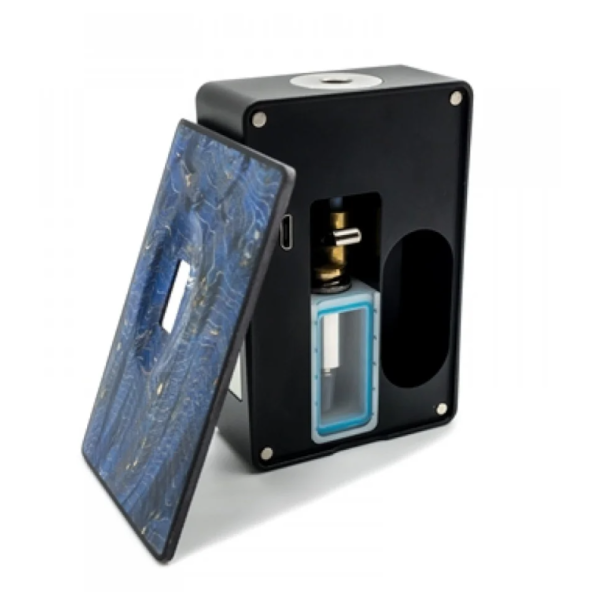

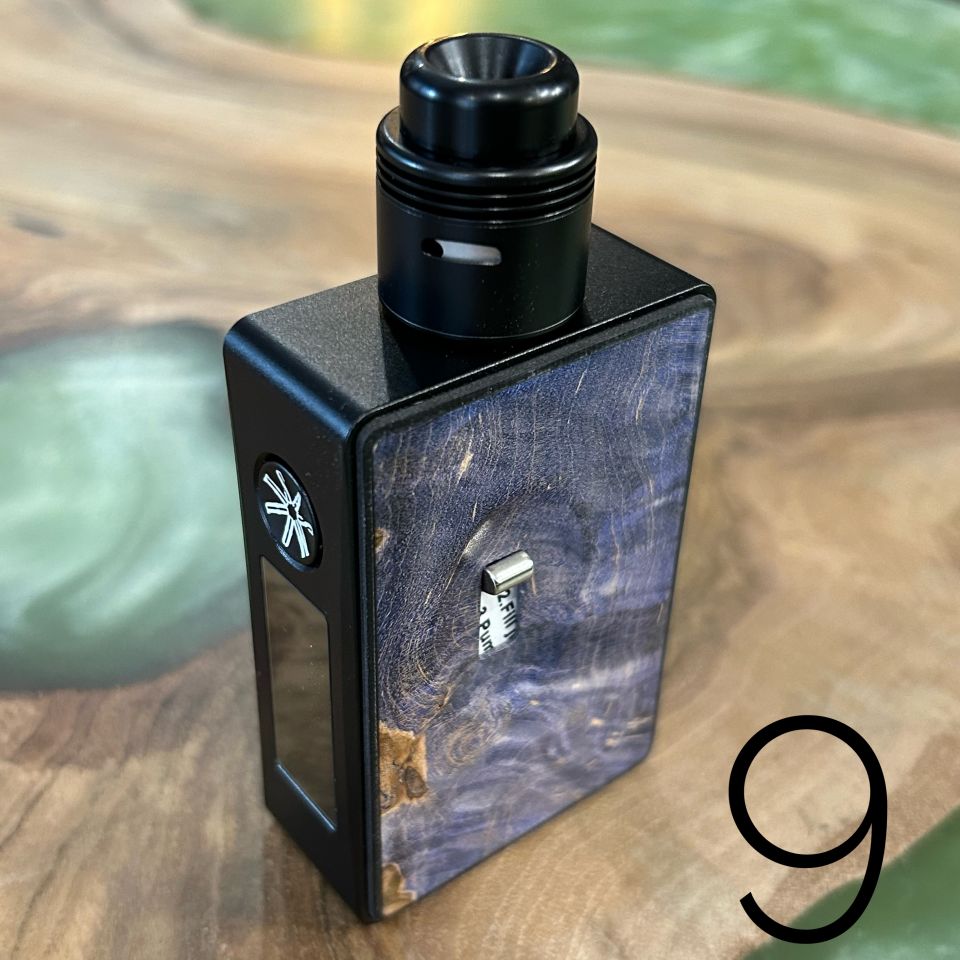

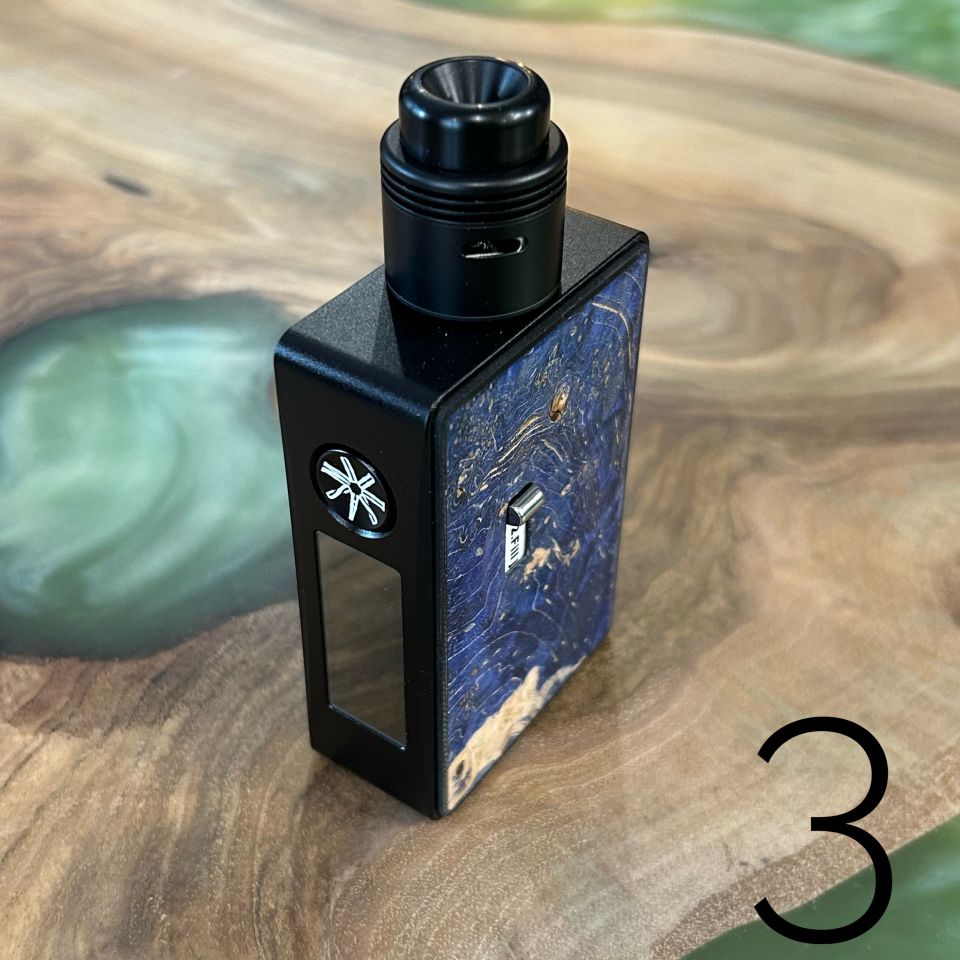

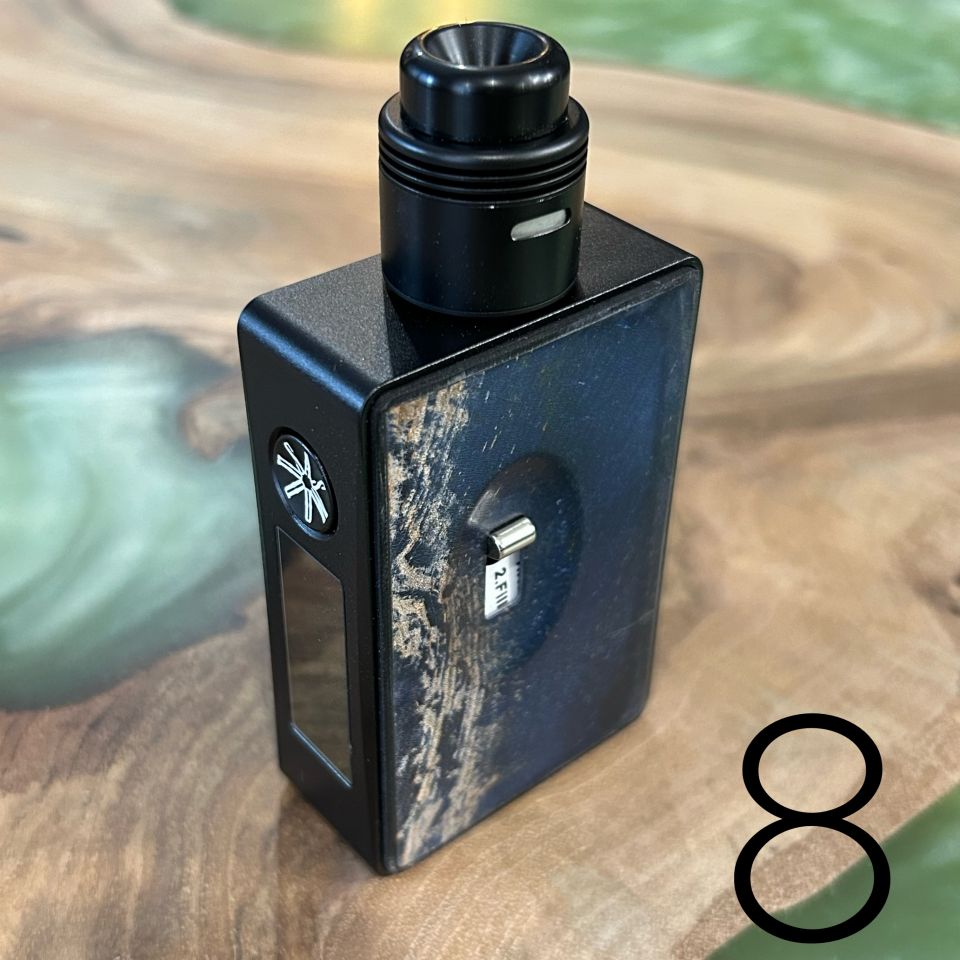

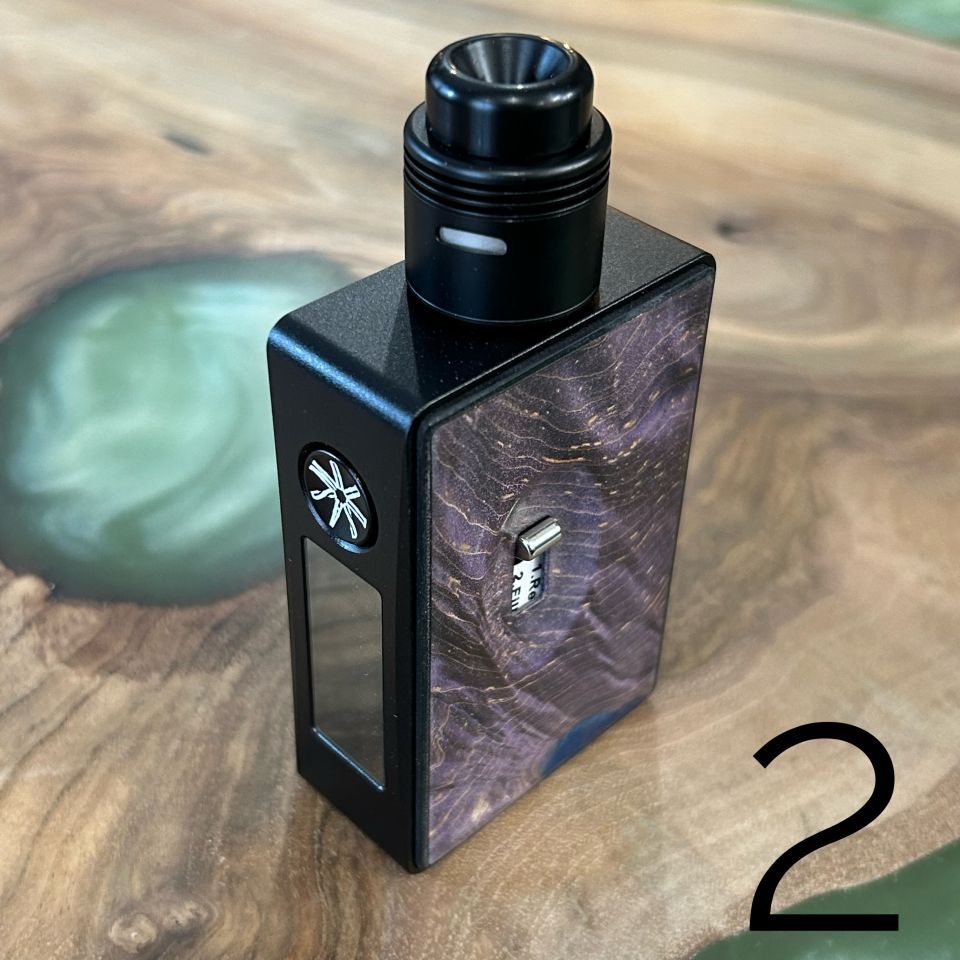

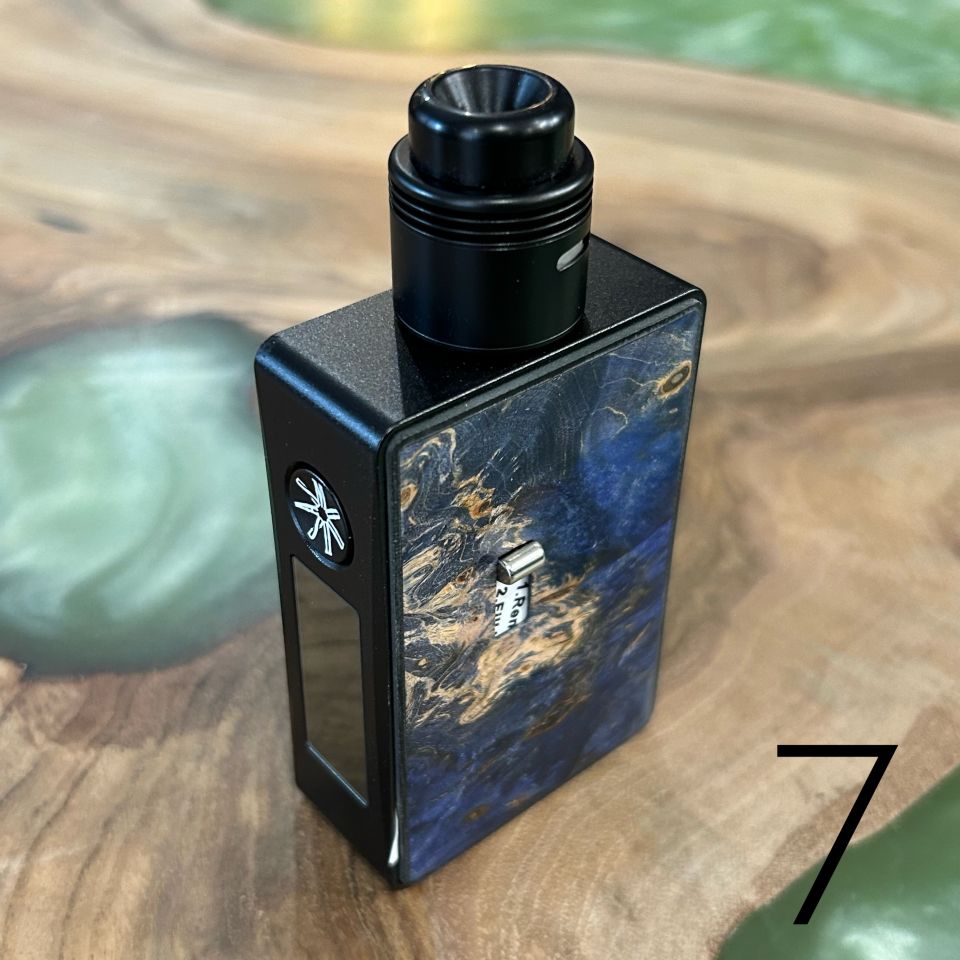

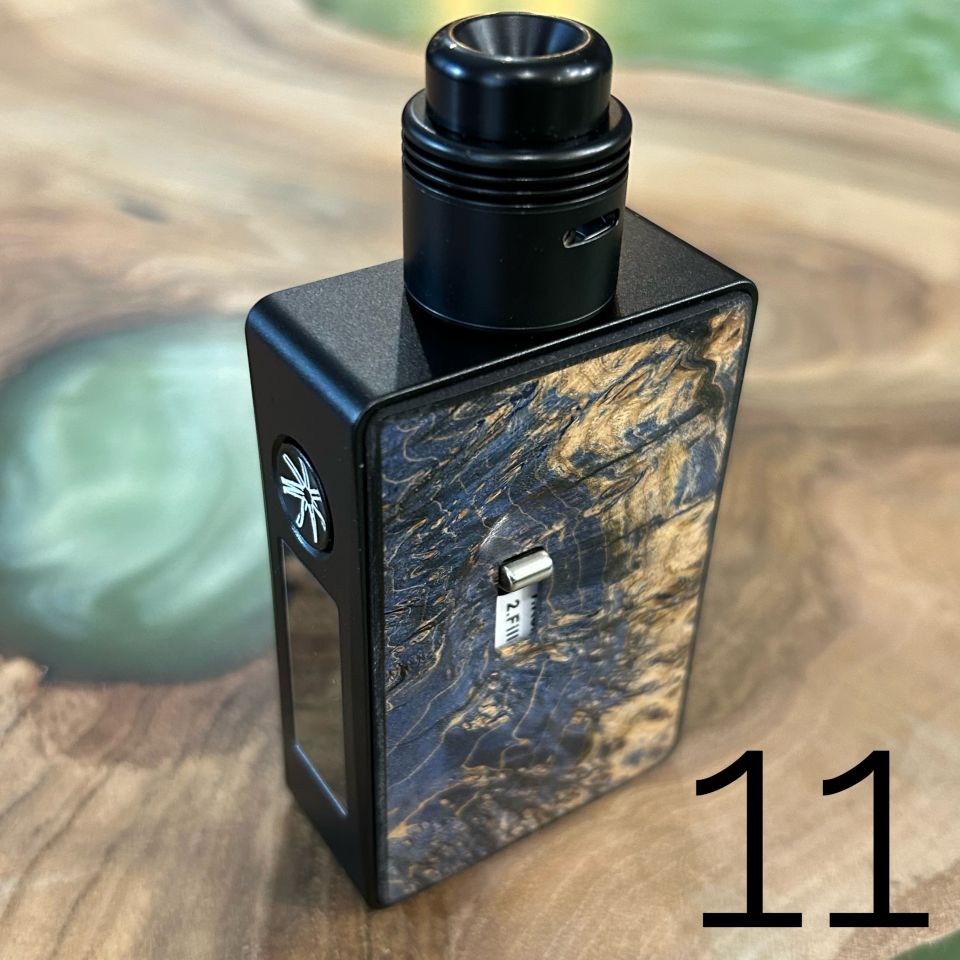

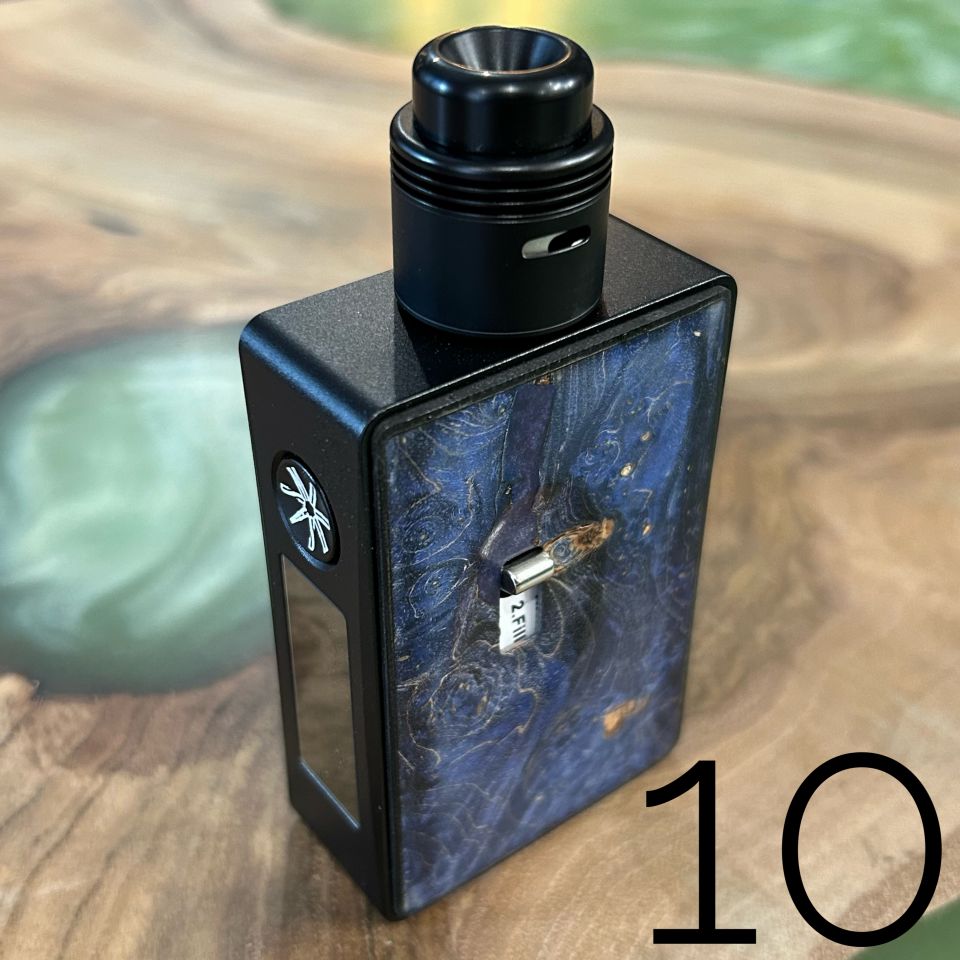

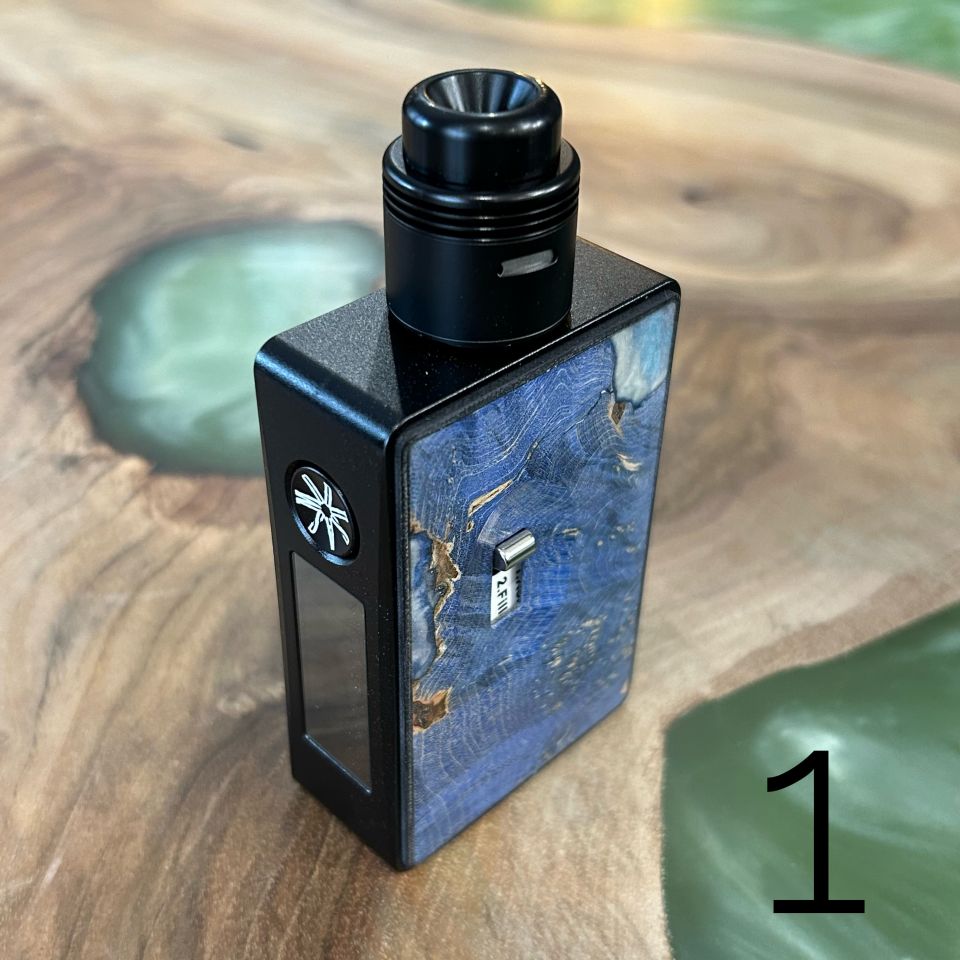

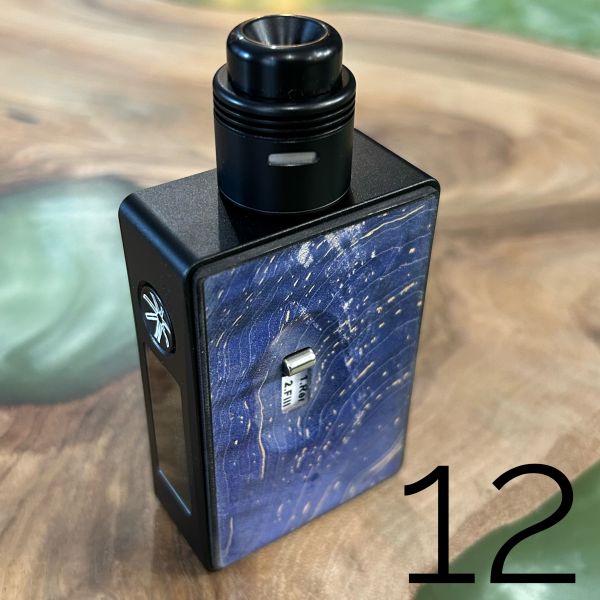

The mod is compact in size. These are 55 x 110 x 27 mm. The weight (without battery) is 180g. The design is rather minimalistic. The construction of the mod is made of zinc alloy, which is followed by panels with stabilized wood decoration. On the outside of the mod, you will find a glow button on the front, an OLED touch screen, which is also used for control. On one of the side panels there is a hole for moving the lever of the squonking mechanism. Next to the squonking mechanism, under the panel, you will also find a micro-USB connector. The other panel then hides the battery slot. Both panels are held onto the mod by magnets.

The mod is powered by the GX-80H chipset, which allows the mod to deliver up to 80W of power and offers a variety of output modes: power, TC, TCR, TFR and Curve mode. Control and user interface adjustments are made via the OLED touchscreen.

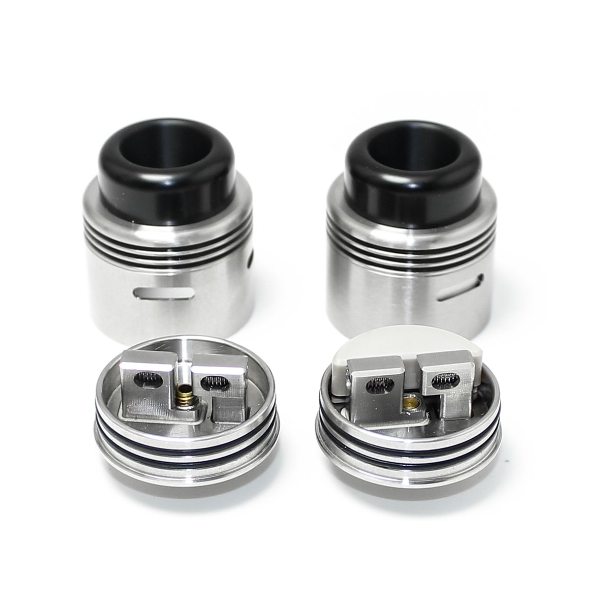

The Asmodus Fonte RDA atomizer is also included. It is a dual-coil atomizer with a post build deck. The accessory also includes a insert in a position of one coil so that the atomizer can also be operated on a single coil. The atomizer will offer lateral air access that can be controlled by rotating the topcap. The BF Pin is already pre-installed on the atomizer.

The device has a slot for one 18650 battery (not included). We recommend using a cell with a discharge current of at least 25A. The Micro-USB port, located under one of the panels, can be used for charging.

Parameters:
Dimensions: 55 x 110 x 27 mm.
Weight: 180g (without battery)
Power: 5W - 80W
Power (TC modes): 5W - 60W
Supported materials for TC mode: stainless steel SS316, SS317 and SS304, Ni200, Ti.
Touch OLED display
Battery: 1 x 18650 (not included)
Squonk bottle volume: 6ml
Atomizer: twin-spiral, post base

Package Contents:
1 x Asmodus Spruzza 80W Squonk mode
1 x Asmodus Fonte RDA
2 x Fused Clapton 0.3 ohm, Ni80 coil
1 x set of spare o-rings
2 x inbus
1 x cap for operating the atomizer on one coil only
1 x centerpin (BF centerpin pre-installed)

Manufacturer: Asmodus
